Handcrafted 900×350mm HO Narrow Gauge Layout Base w/ Turntable | HOe / HOn30 / HOn2½
¥87,500($551.25)
the last one
International shipping available
Payments will be paid in Japanese yen. The price in the foreign currency is a rough estimate.
【Overview】

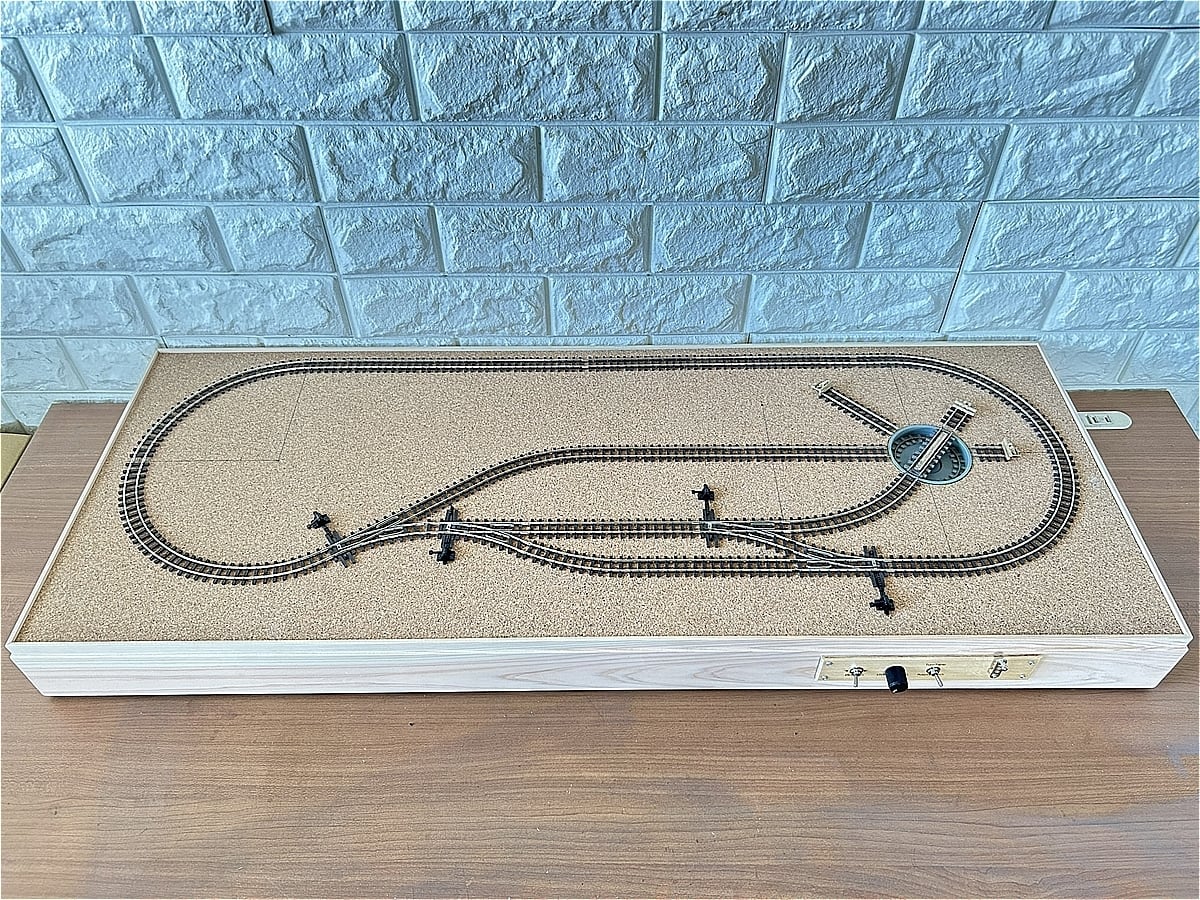

Handcrafted narrow gauge layout base inspired by legendary Japanese layouts. Supports HOn2½ (HOn 2 1/2) / HOn30 / HOe. Includes a smooth manual, hand-cranked turntable with a built-in polarity reversing switch. The turntable is pre-painted/weathered and can be removed easily during scenery work. IMON (ex-Shinohara) Code 60 rails laid to approx. R125 mm with an IMON R150 turnout. The frame is made from beautiful Japanese hinoki (cypress). A compact PWM power unit with polyswitch (short-circuit protection) lets you run trains right away. (AA batteries not included)
【Key Features】
• Compact desktop size: display and operate right on your workbench
• Manual turntable: custom unit, pre-painted/weathered, wired with polarity reversing switch
• Hinoki frame: elegant grain and premium feel

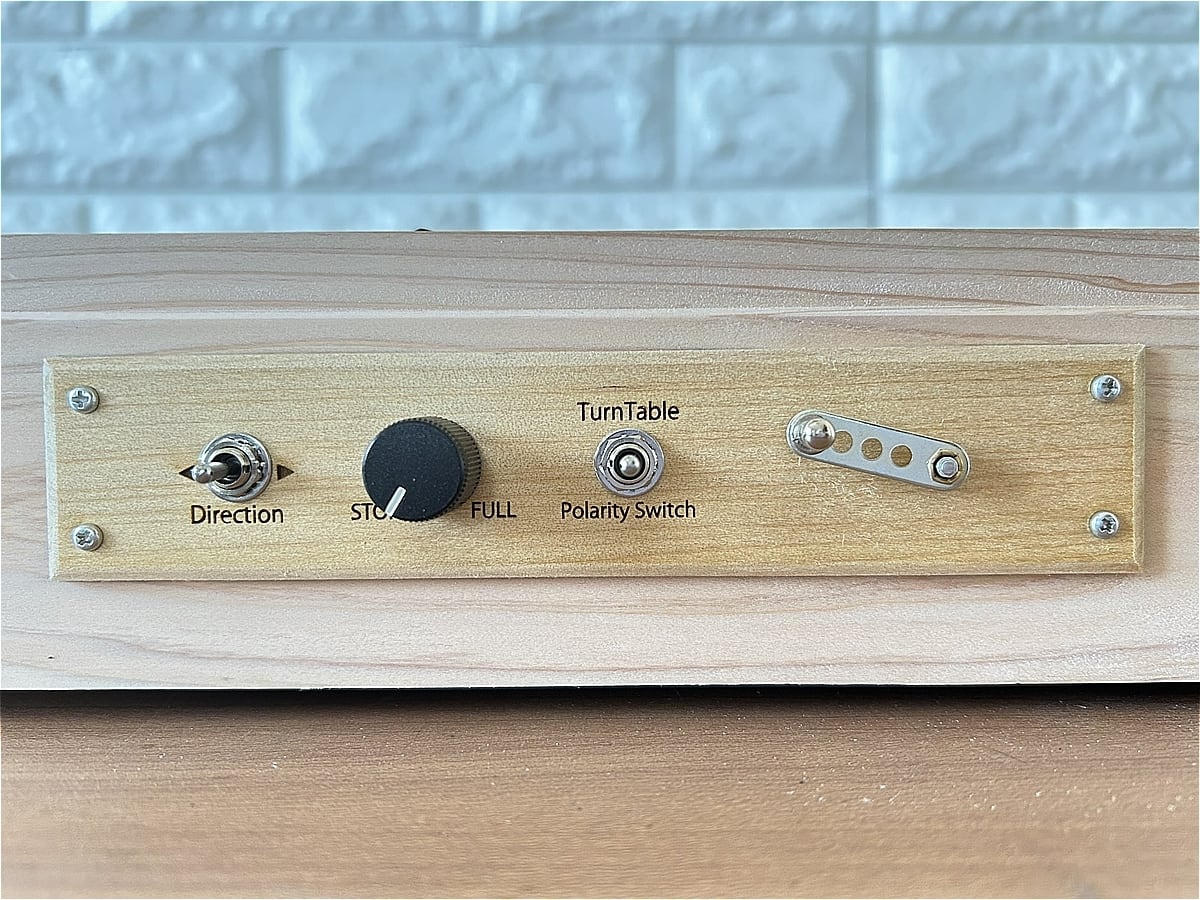

• Built-in PWM controller: speed + direction; quick start (use 8×AA batteries)
• One-of-a-kind: carefully hand-built from the base frame up
【International Orders — Summary】
This shop uses BASE’s “Easy International Sales” service for eligible items.
For international orders, we ship only to the designated domestic warehouse in Japan.
Separate orders cannot be combined into one shipment.
【Shipping — Summary】
Orders are usually shipped within 3 business days after payment is confirmed.
For international sales orders, shipment must be completed within 10 days from the order date.
【Returns / Support — Summary】
Returns or exchanges for the customer’s own reasons are generally not accepted.
For international sales orders, returns, exchanges, cancellations, and related handling may differ from our usual policy and will be subject to the relevant service rules.
【Notes】
Gift wrapping and extra enclosed items may be restricted.
For full details, please see our Shopping Guide / FAQ.
【Specs】

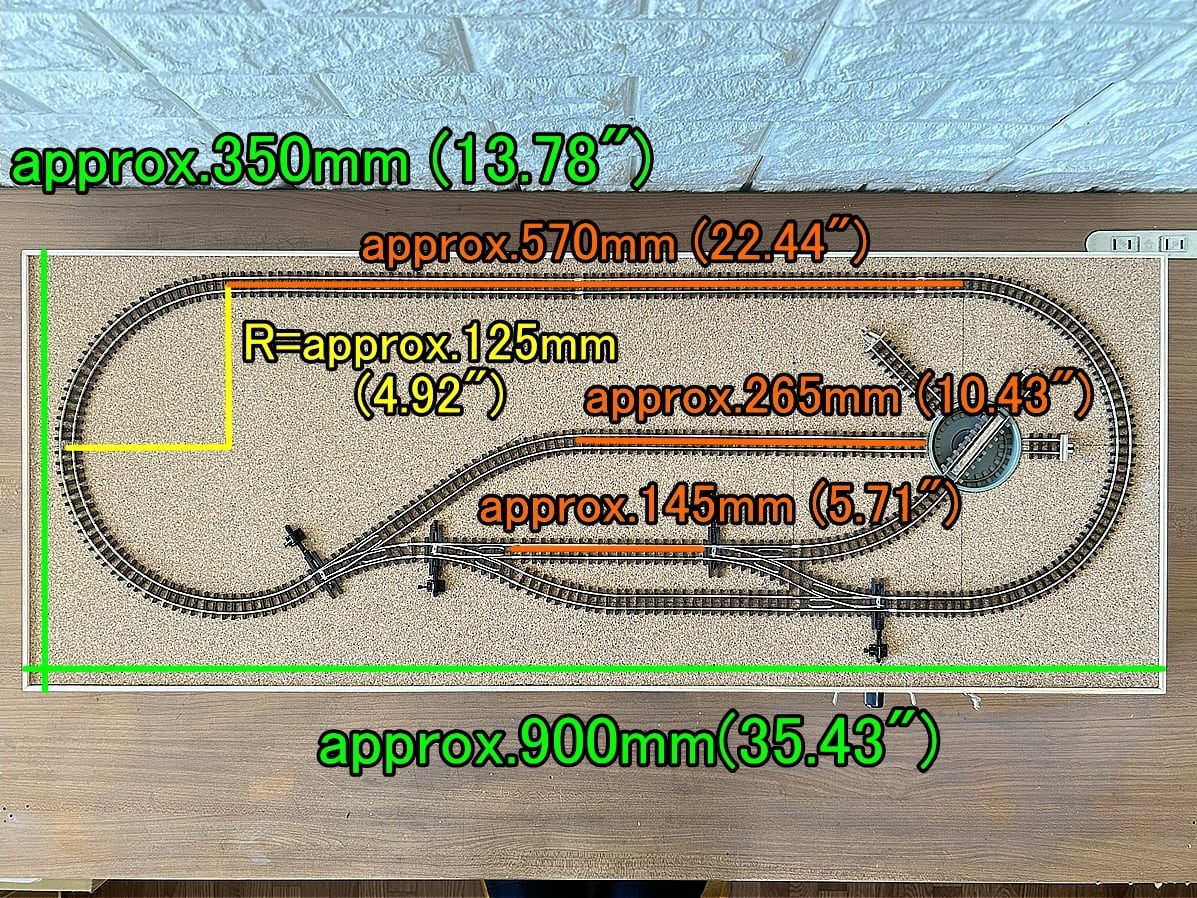

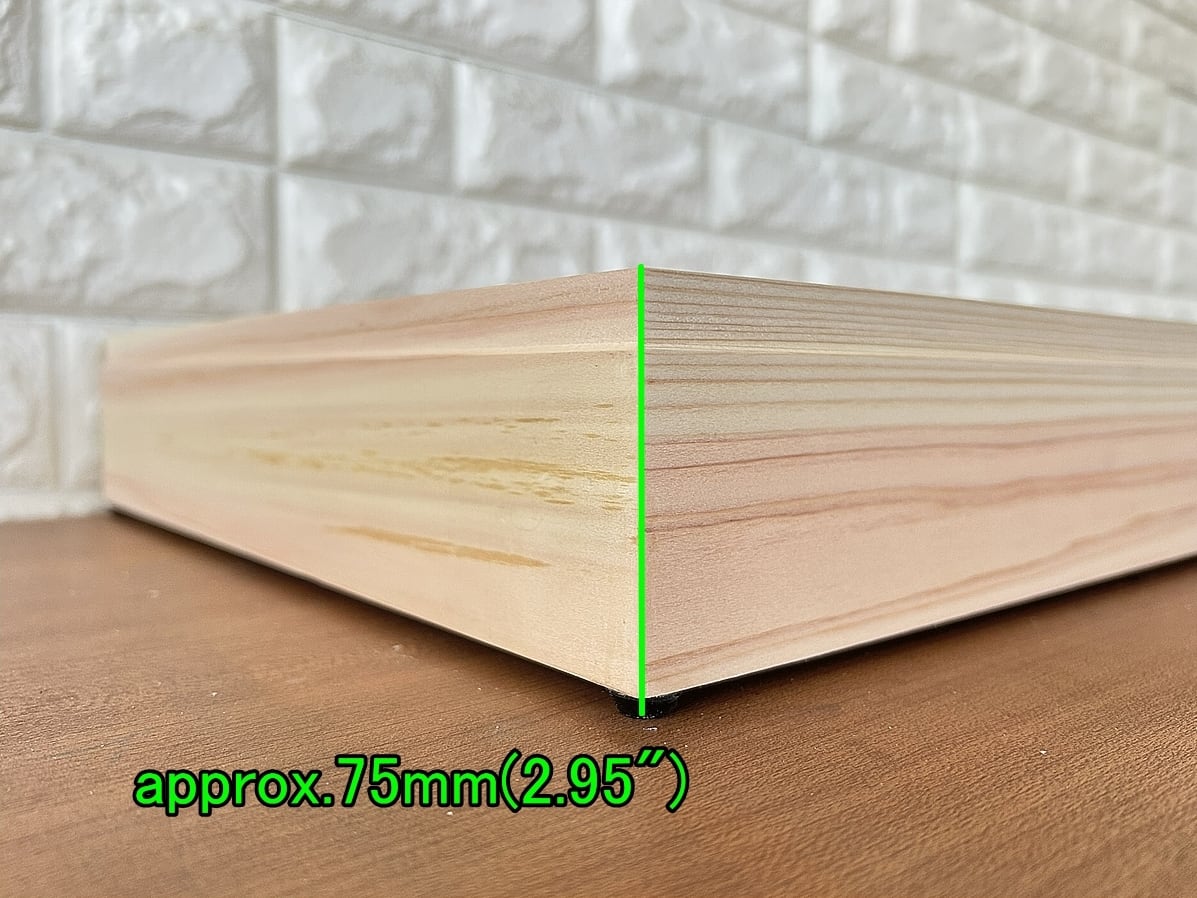

• Size: approx. 900×350×75 mm (≈35.4"×13.8"×3.0")
• Scale: HOn2½ / HOn30 / HOe (1/87)
• Track gauge: 9 mm
• Minimum radius: approx. R125 mm (≈4.9")

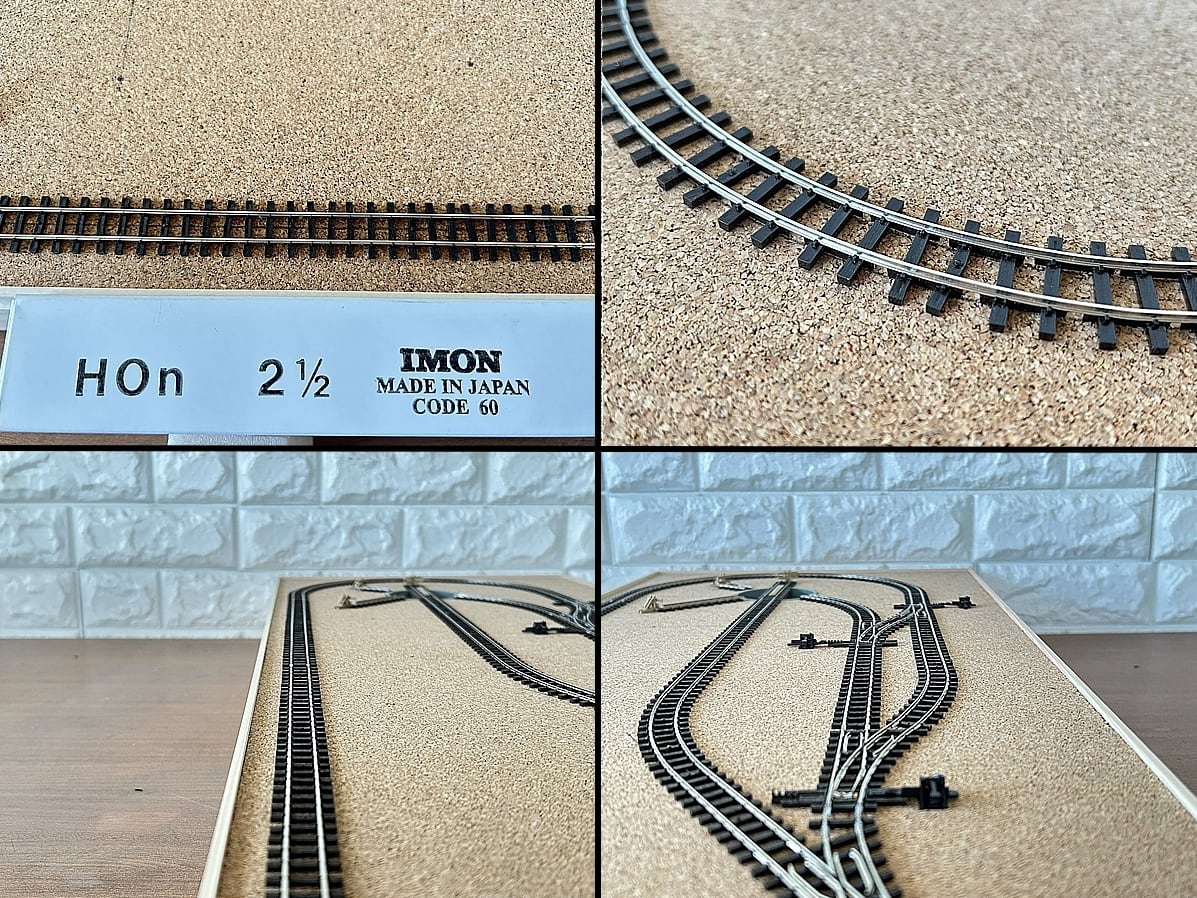

• Rail: IMON (Shinohara) HOn2½ flexible rail, Code 60

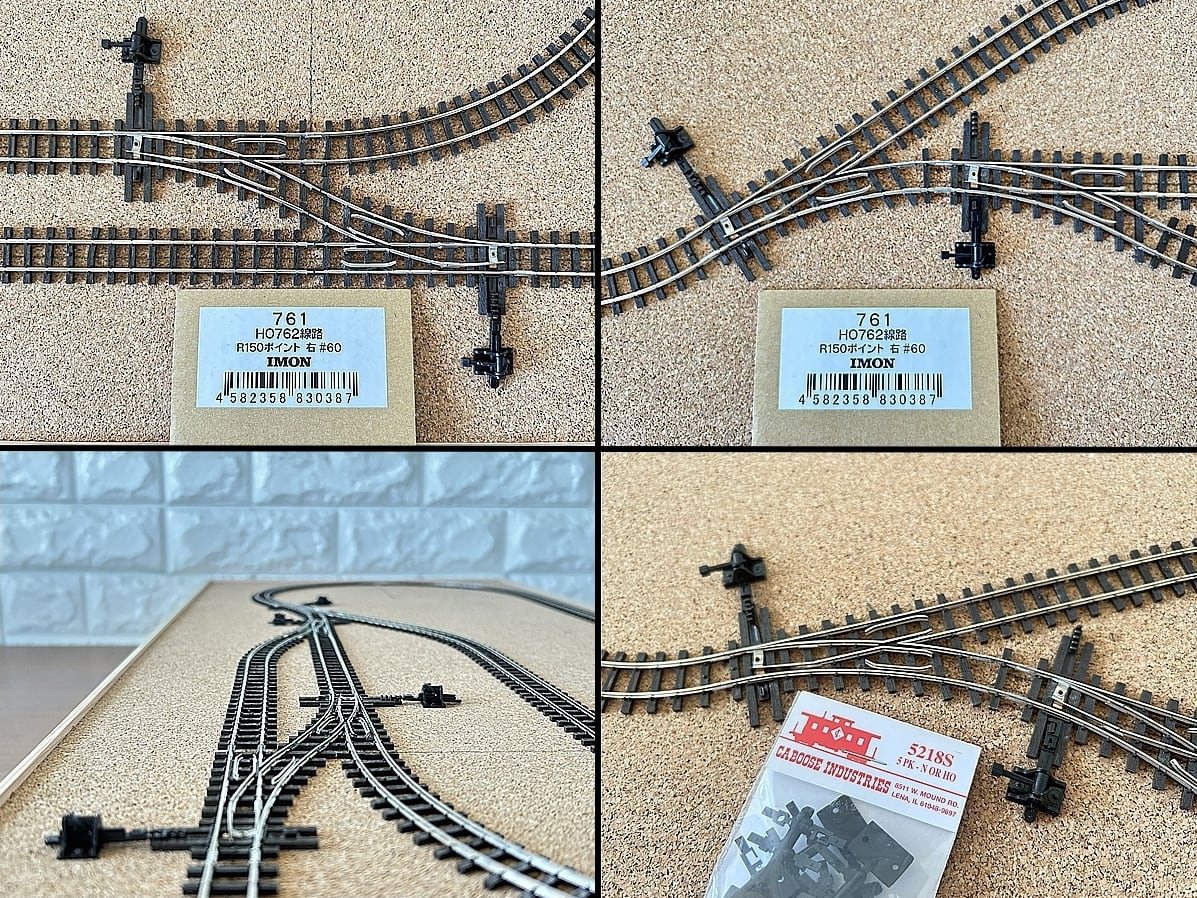

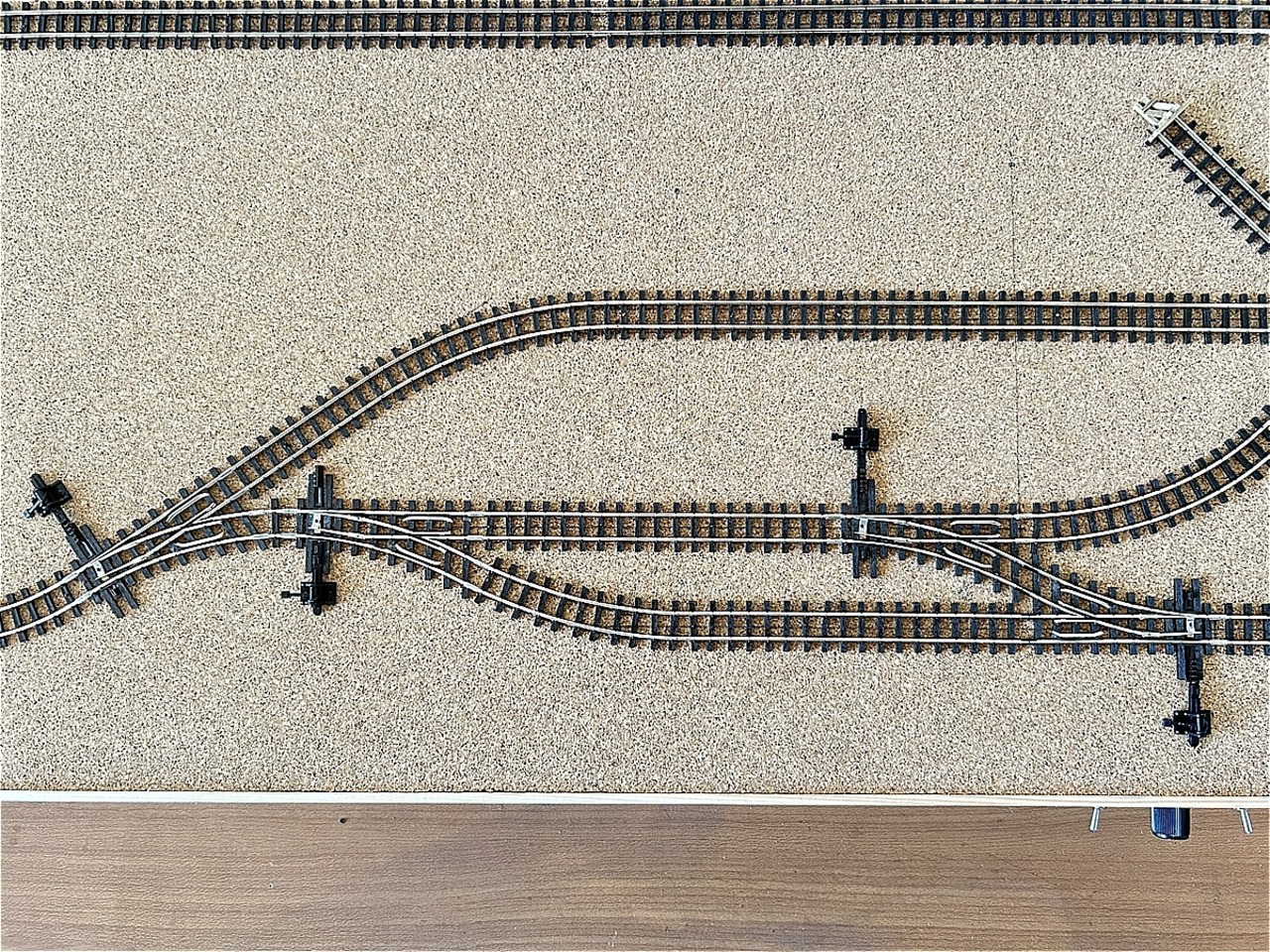

• Turnout: IMON (Shinohara) HOn2½ R150 right, Code 60

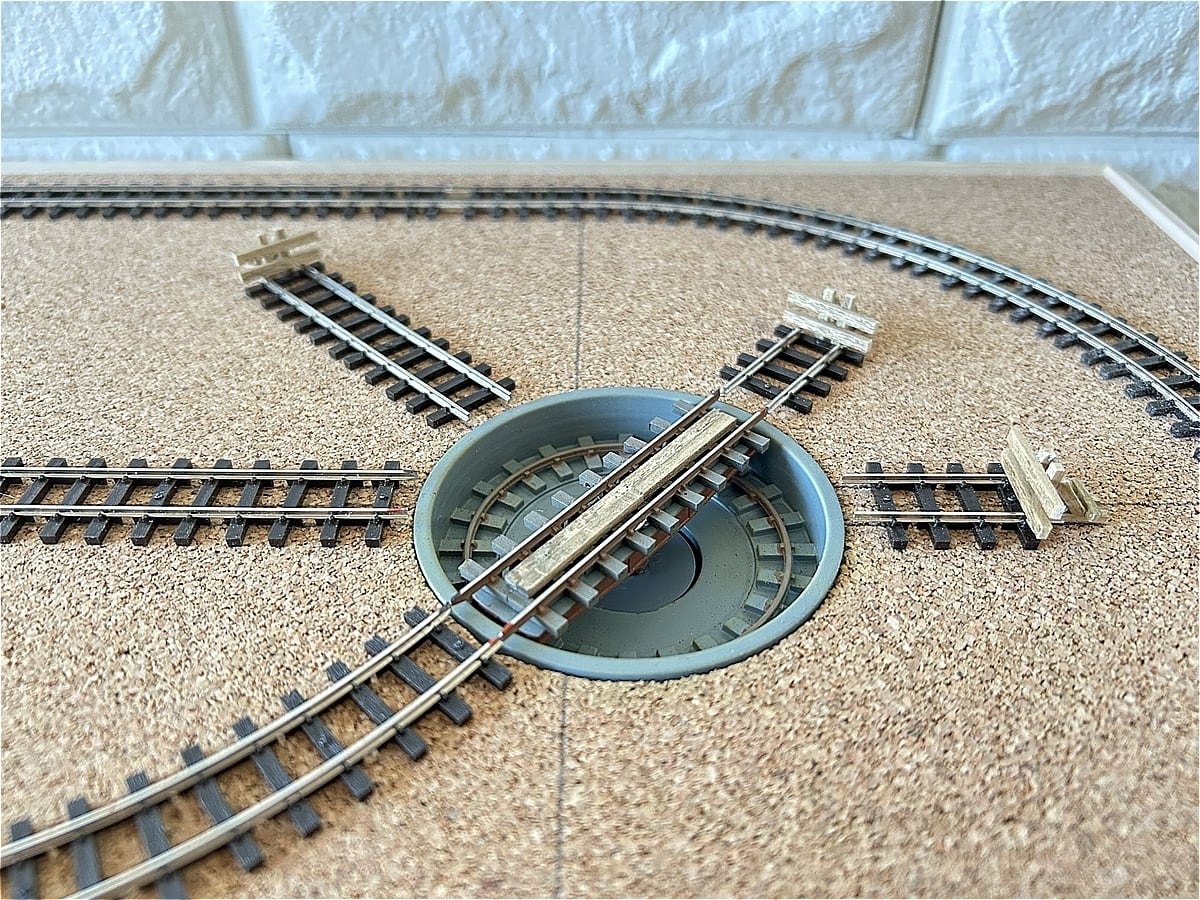

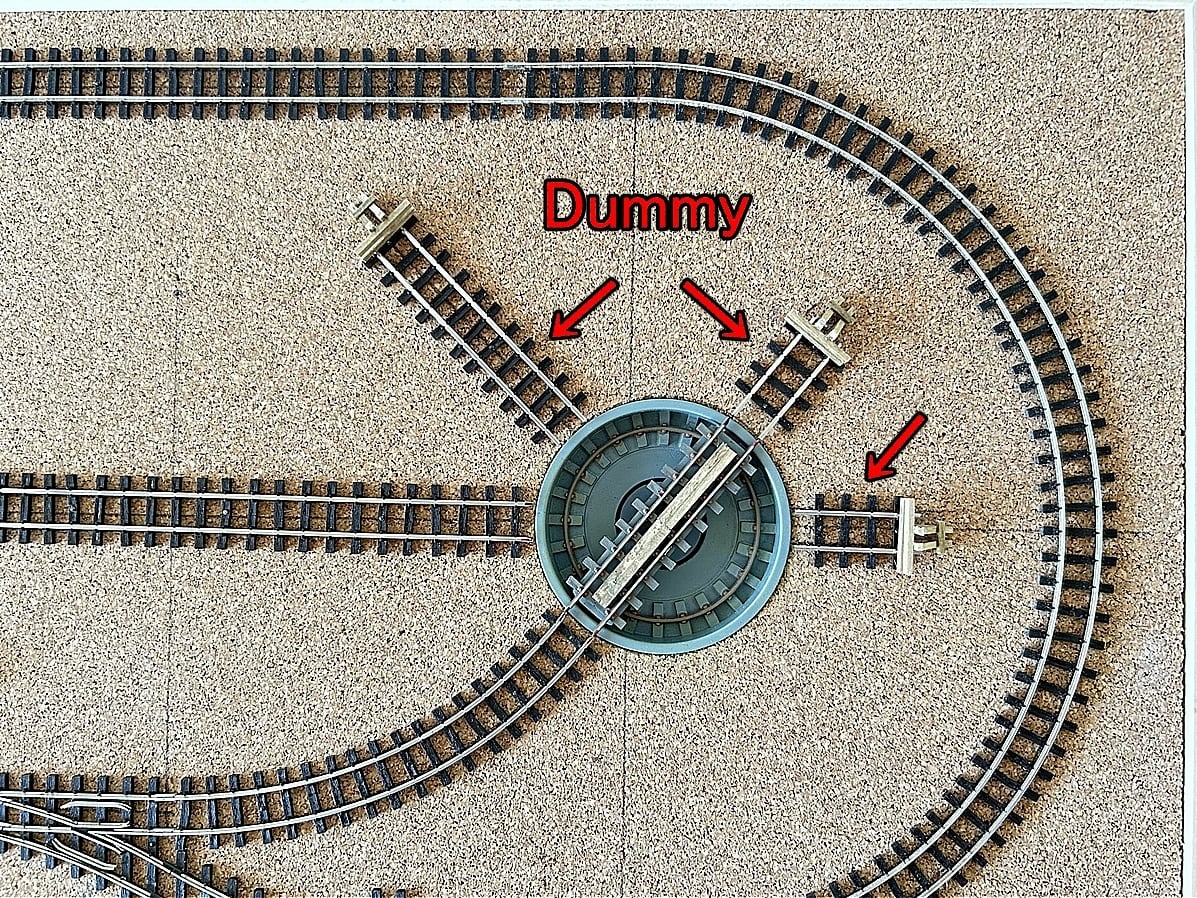

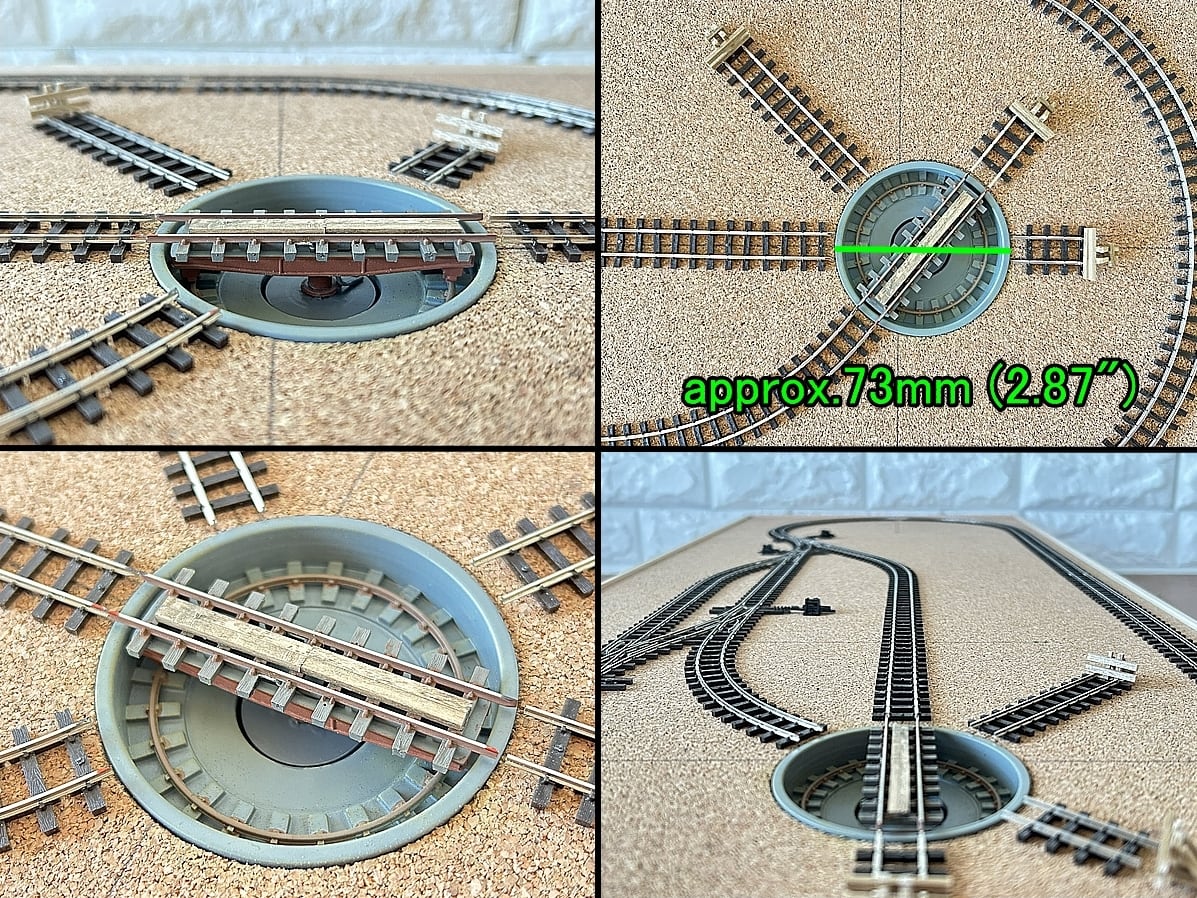

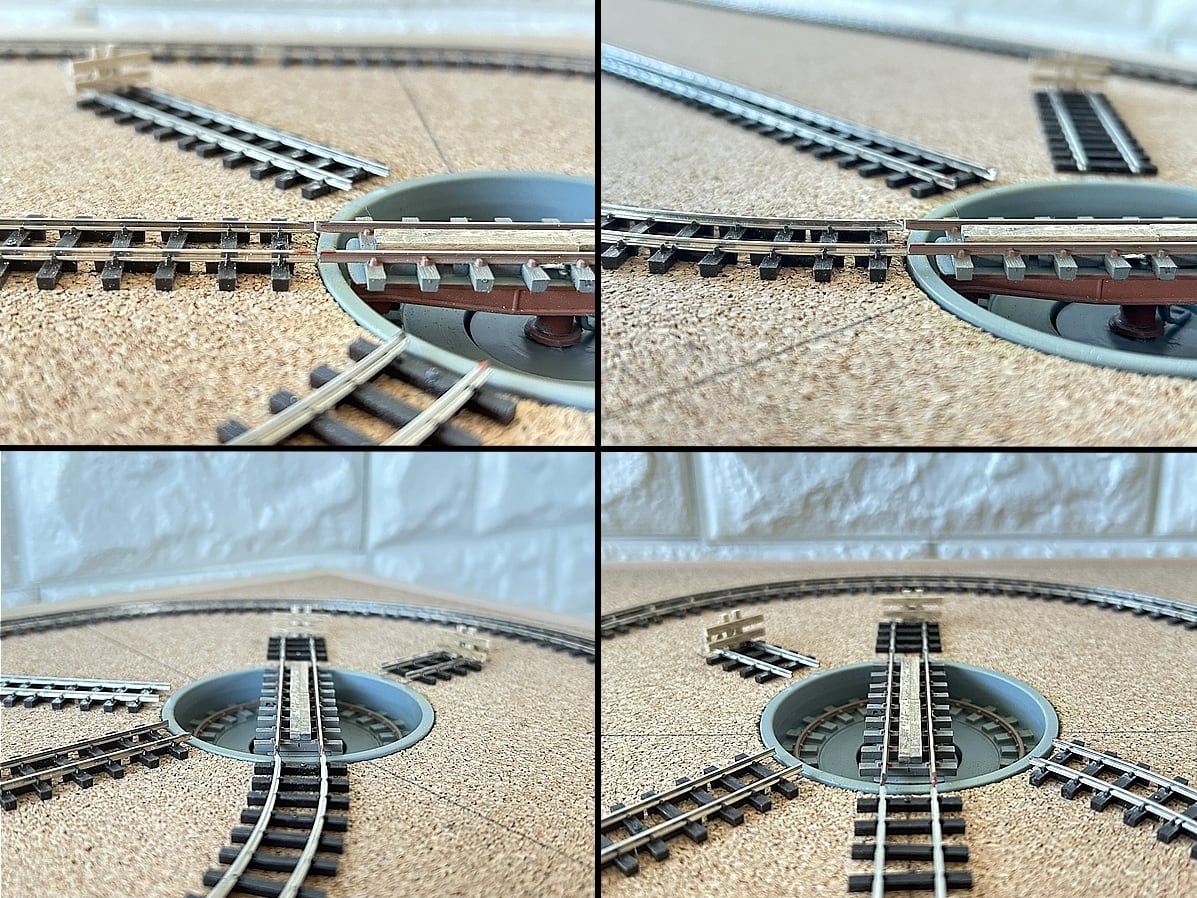

• Turntable: resin, pre-painted & weathered, removable

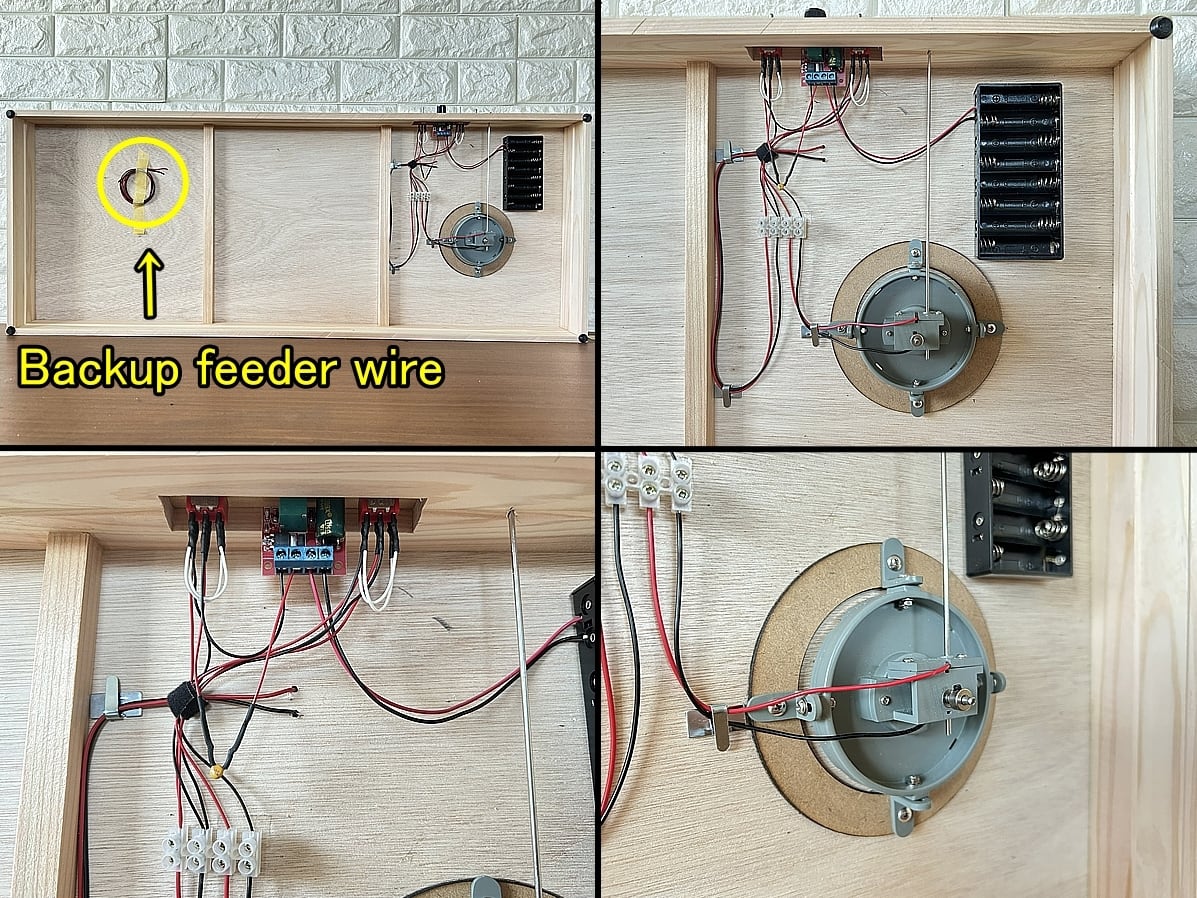

• Power pack: PWM type (12 V capable) with polyswitch; uses 8×AA batteries (not included)
【Notes】
• The turntable deck reverses rail polarity after 180° rotation (use the polarity switch to match direction before running)
• Small radius (R125) limits compatible rolling stock
• IMON turnouts suit fine-scale, shallower flanges; deeper flanges may catch on guard rails/frog
• Coupler swaps may be required for multiple-car operation
• Handmade item: minor warp or deviations may occur
• No rolling stock, scenery, or batteries included
【Tested Rolling Stock (examples)】
• MinitrainS: Köf/Koppel (5031), Gmeinder DL (5012)
• KATO: 11-107, 11-110
-
