Ready-to-Install Manual Turntable – Painted & Pre-Wired | Handcrafted in Japan for Narrow Gauge Layouts

¥16,500($102.30)

レビューを見る

the last one

Payments will be paid in Japanese yen. The price in the foreign currency is a rough estimate.

Shipping fee is not included. More information.

This item can be shipped outside of Japan. View the shipping fee.

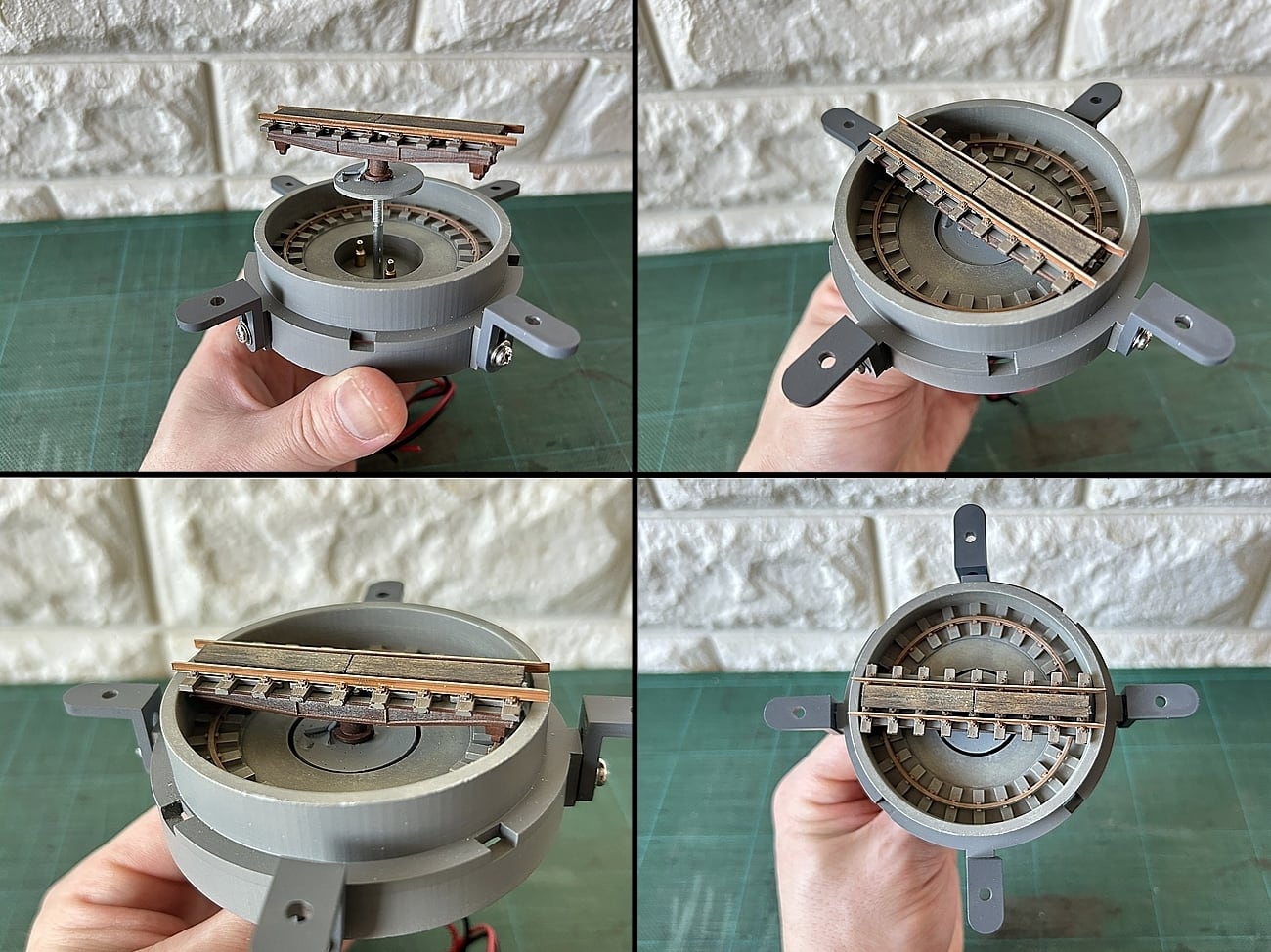

This compact, handcrafted turntable is fully assembled, painted, and pre-wired—ready to install into your narrow gauge layout with no soldering or electronics knowledge required.

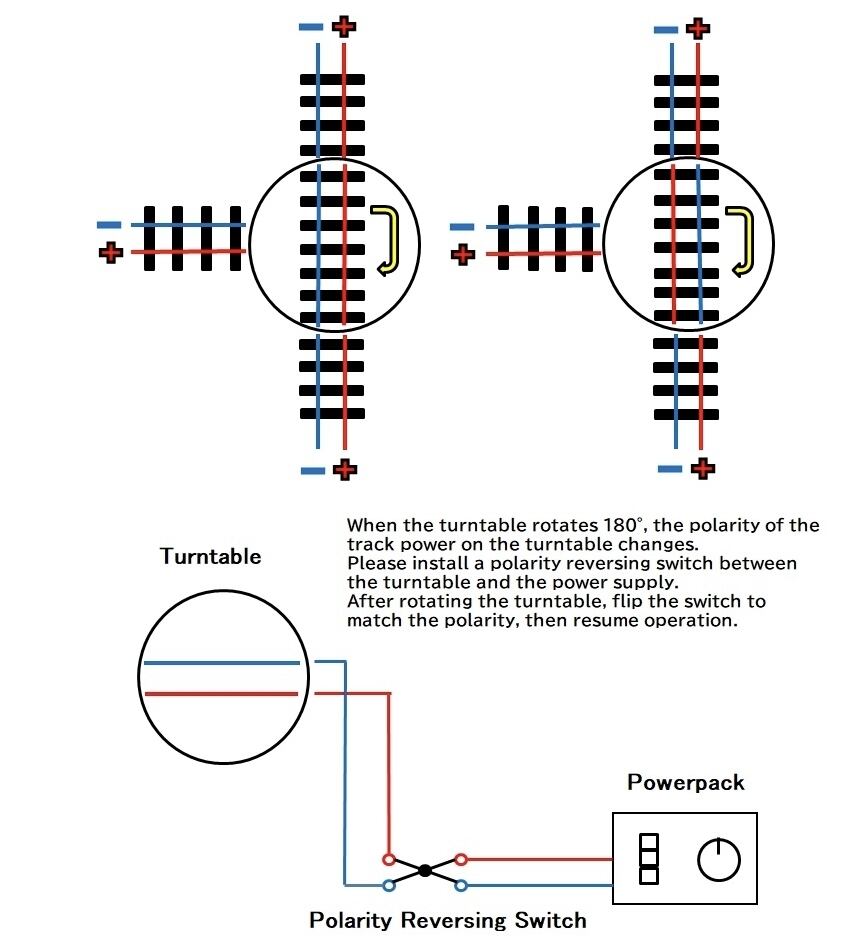

Designed and made in Japan, it features smooth manual operation with a built-in gearbox, a long shaft with hand crank, and a factory-installed polarity reversing switch for safe operation after rotation.

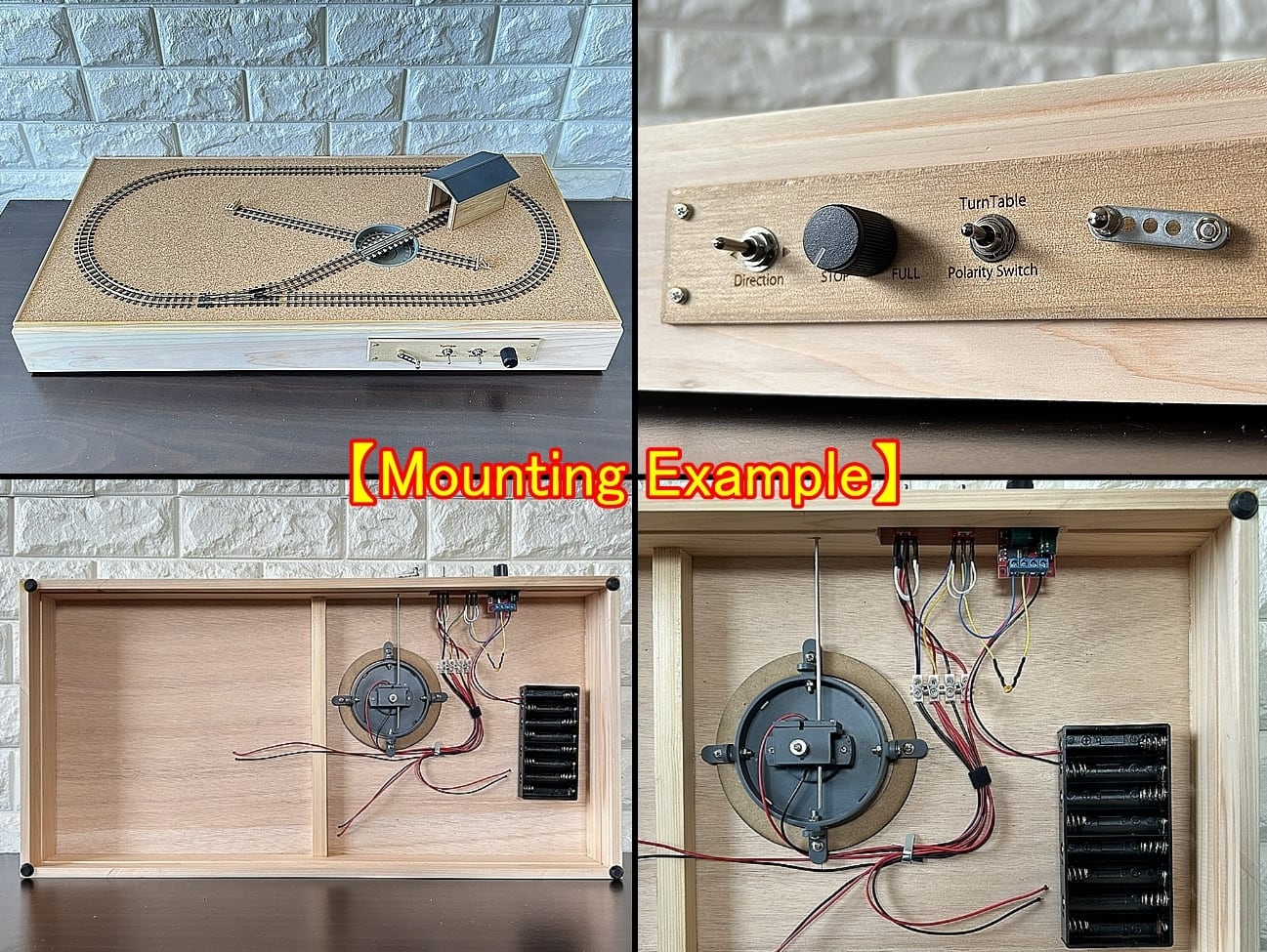

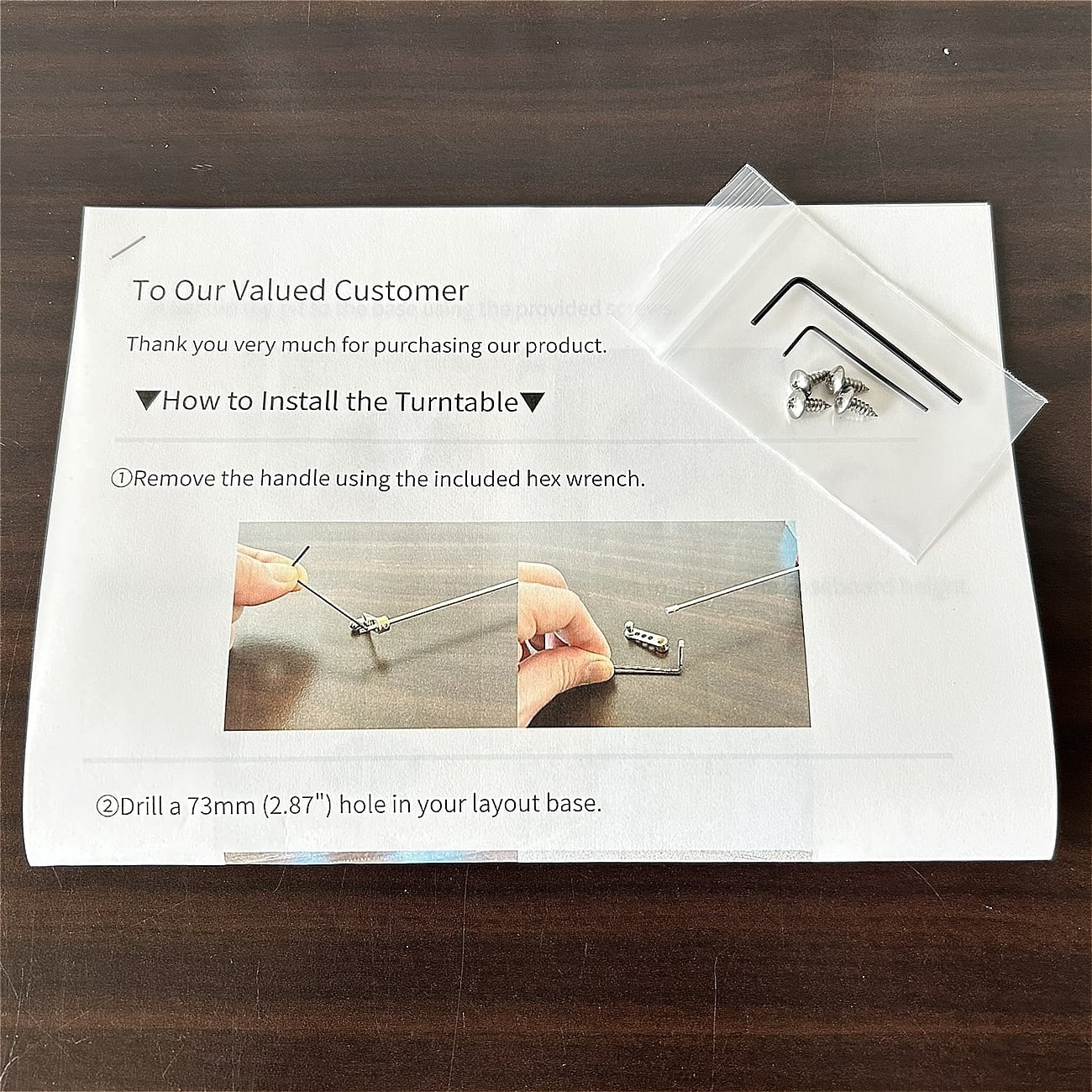

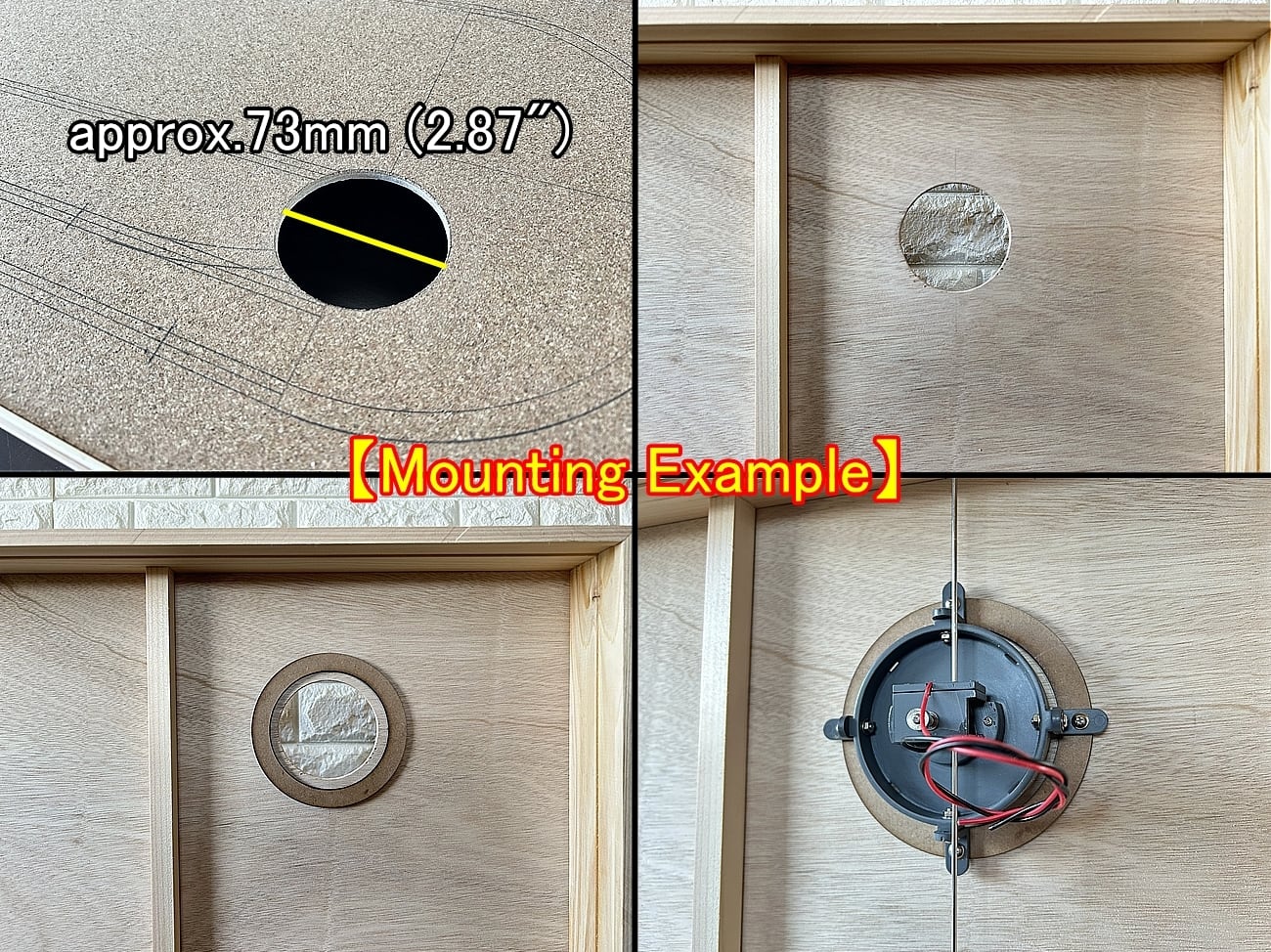

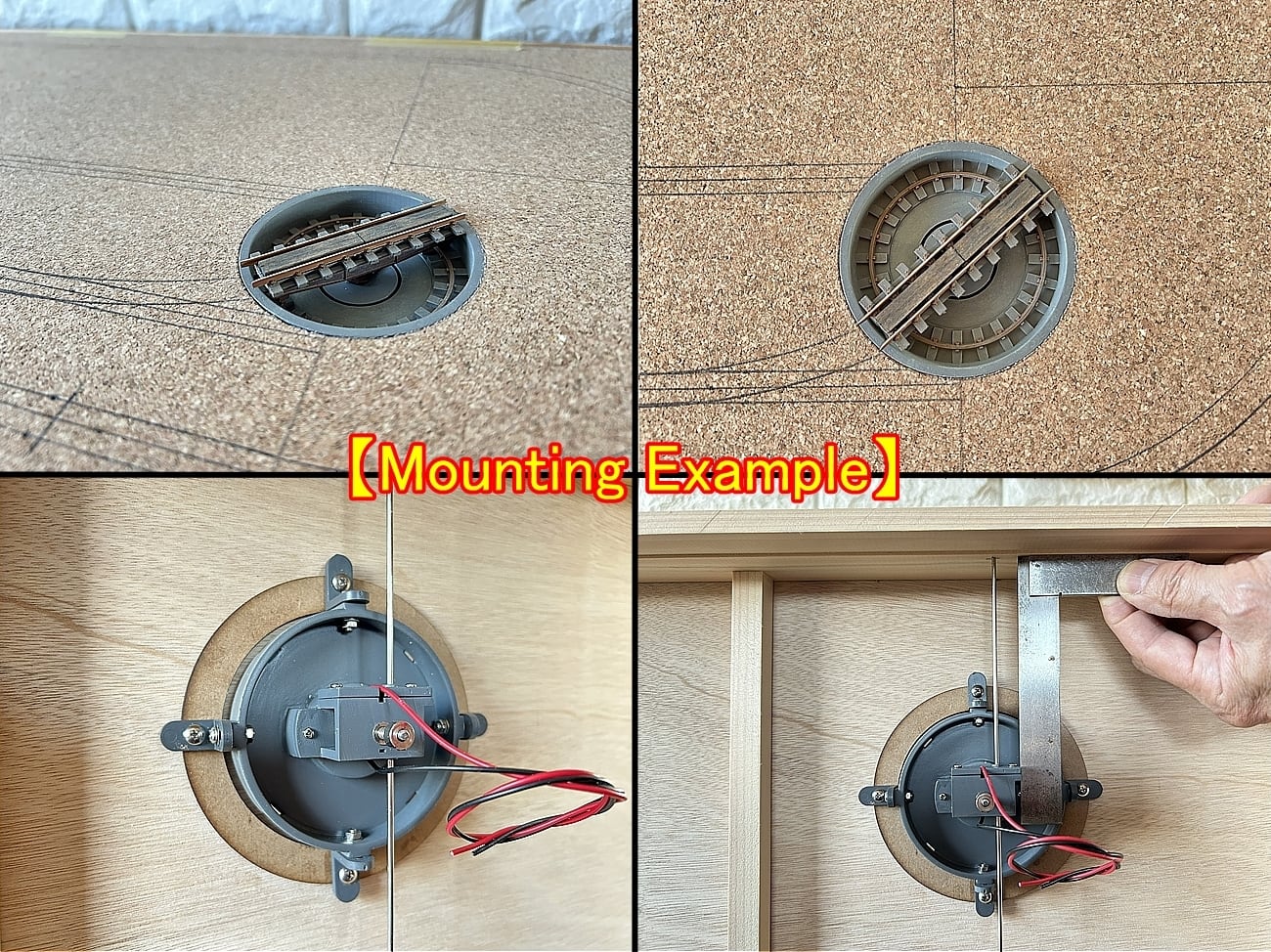

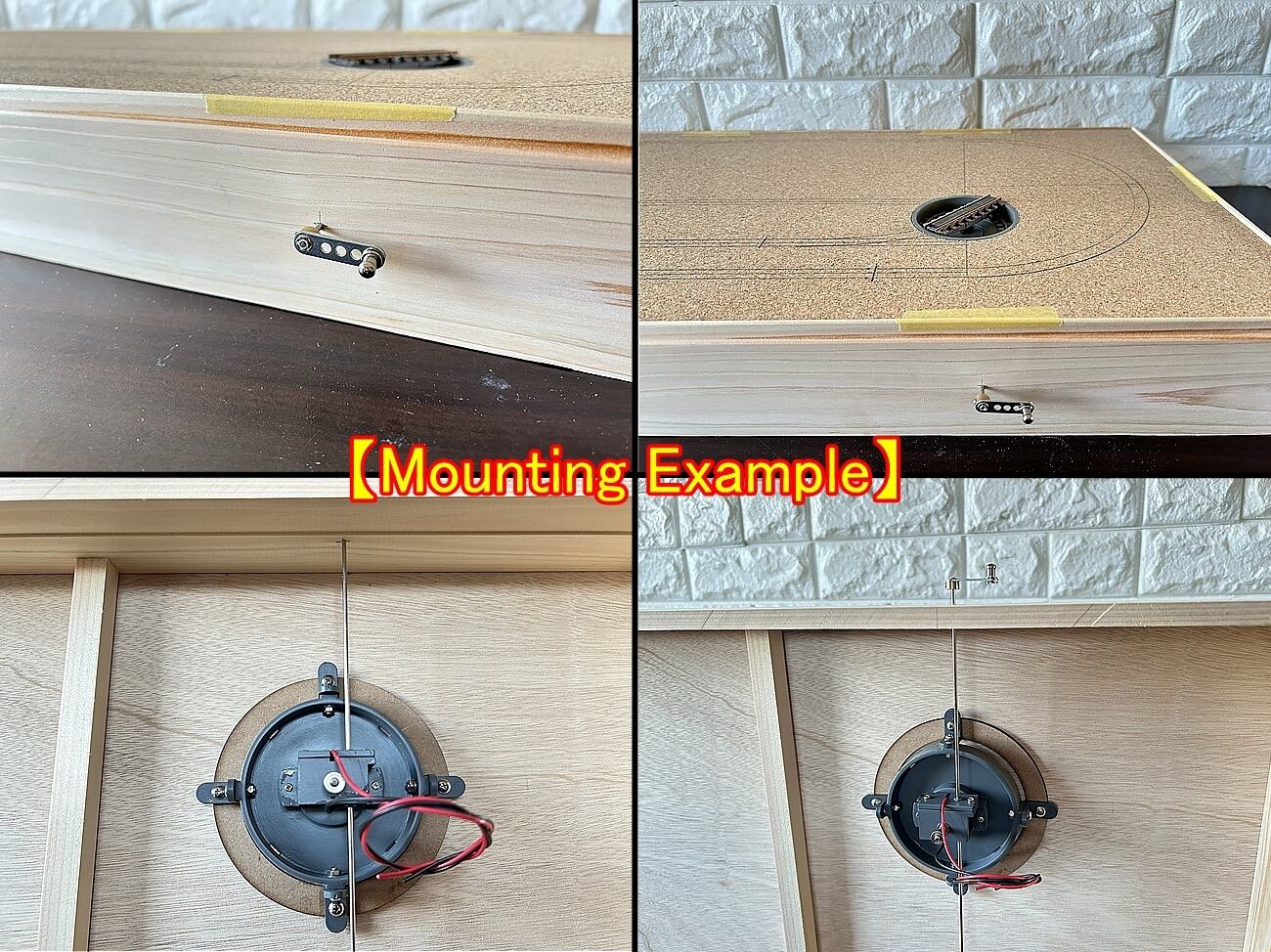

Simply cut a mounting hole in your layout board, drop the unit in, and connect it to your DC power supply.
Perfect for engine sheds, yards, and compact layouts using OO-9, HOe, or other 9mm gauge track.

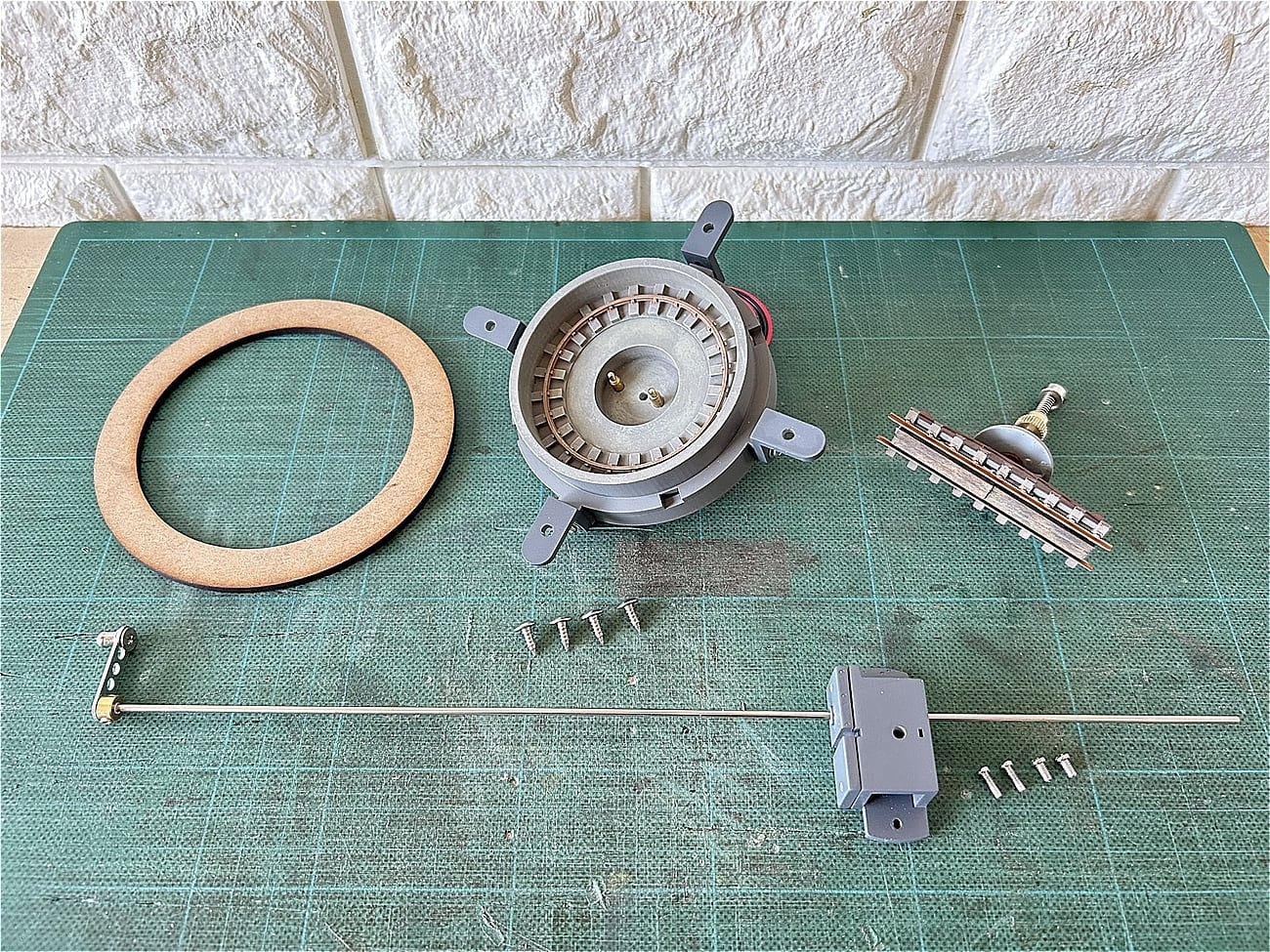

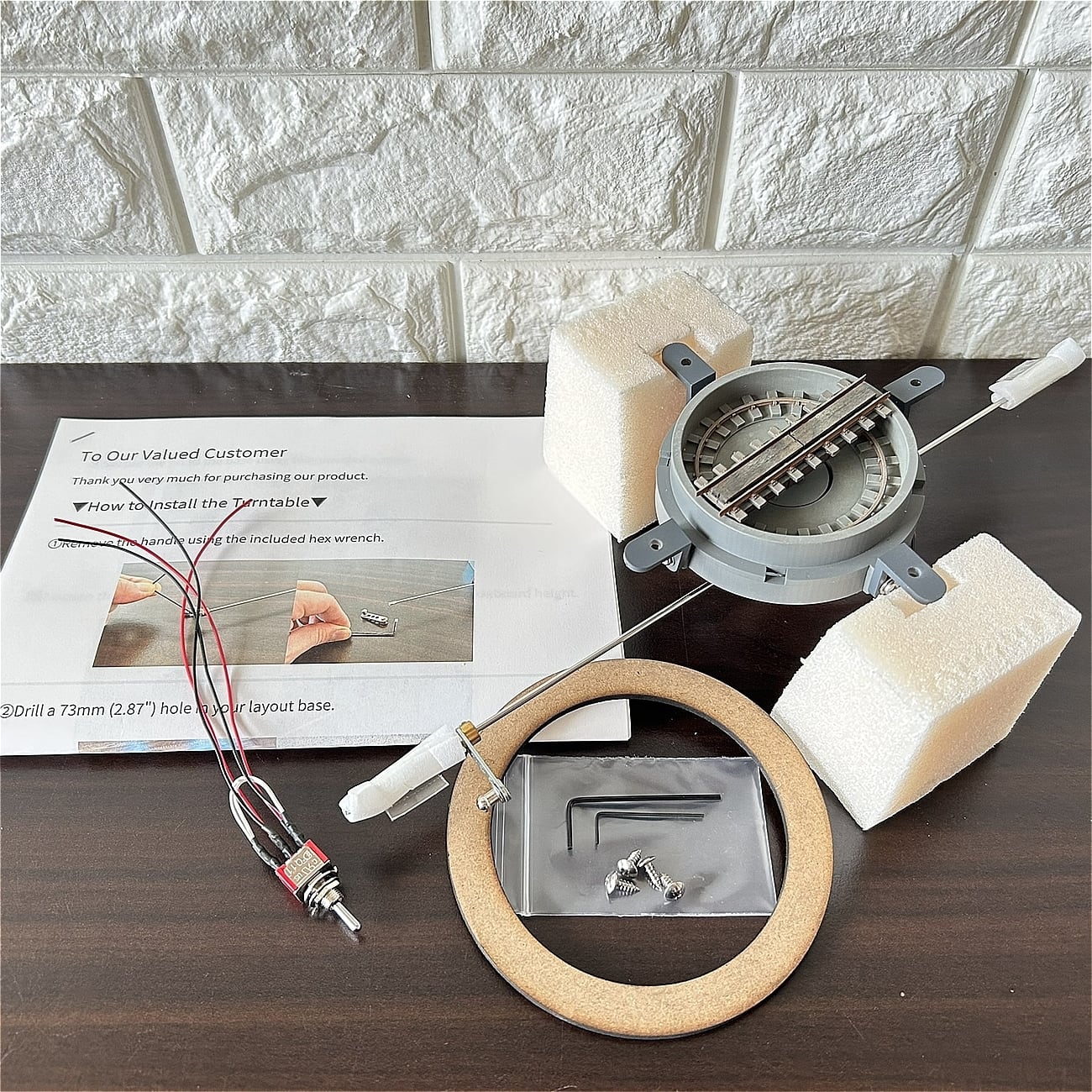

【Set Contents】

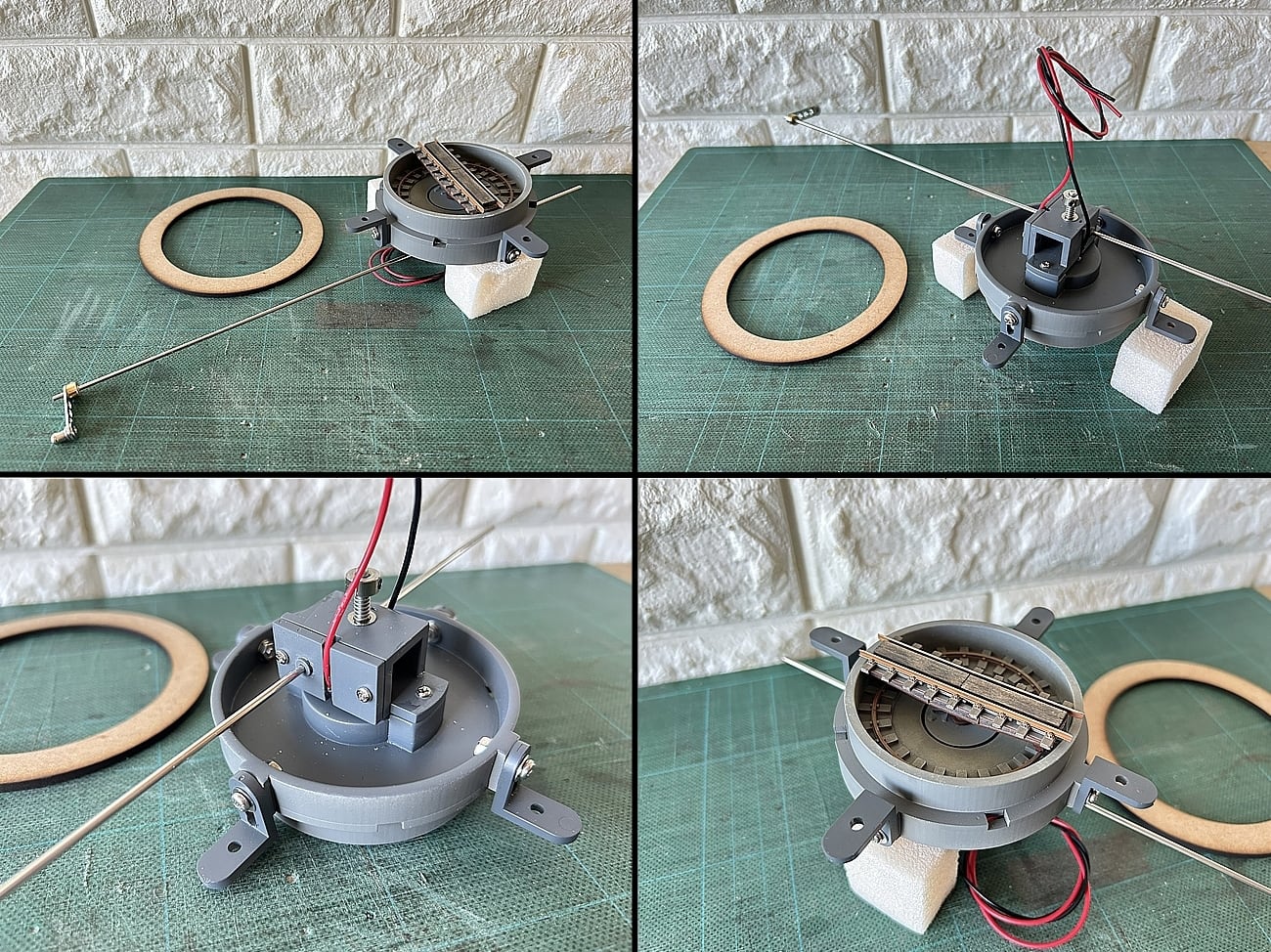

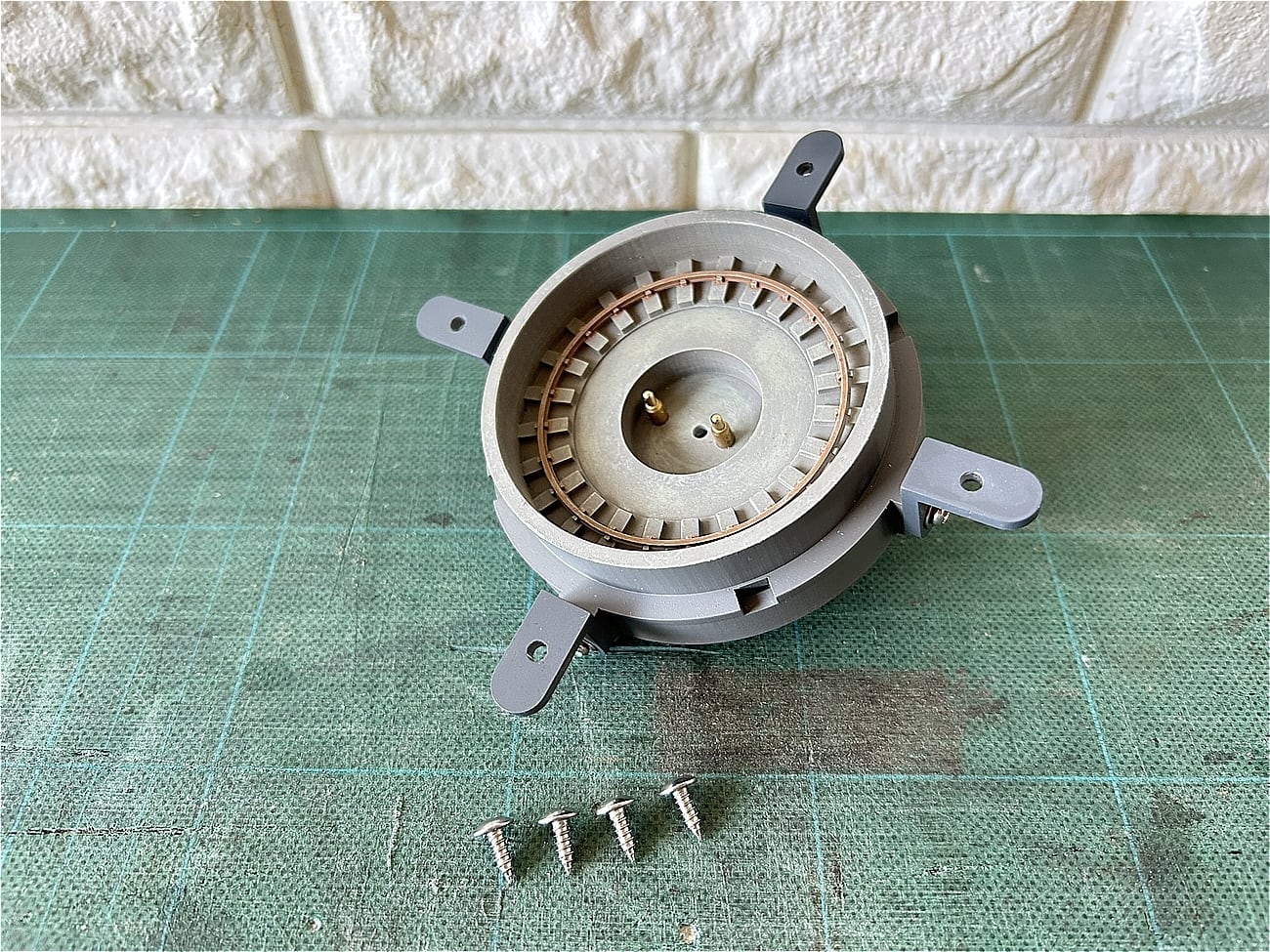

Turntable unit (assembled and painted)

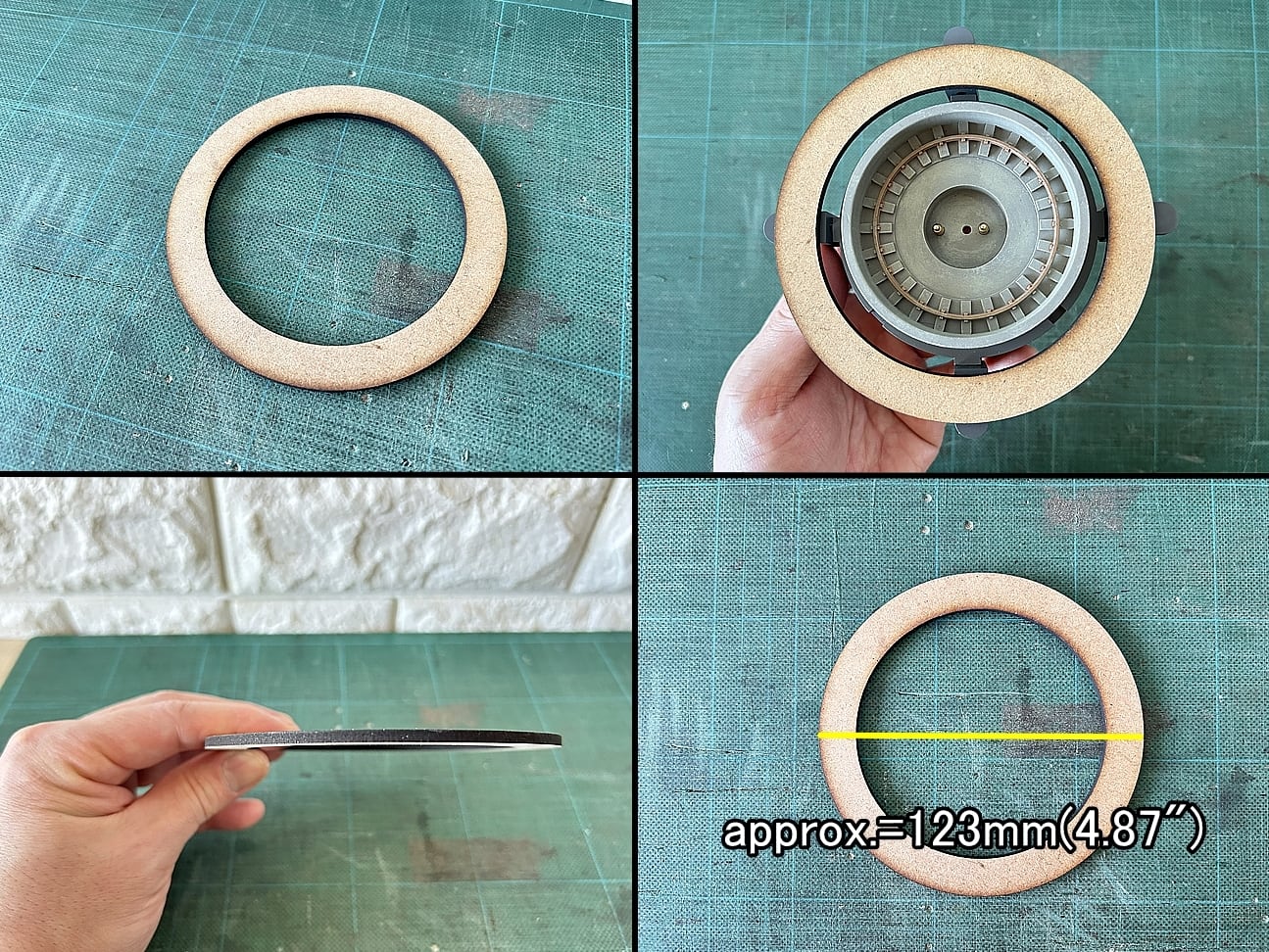

Mounting spacers and screws

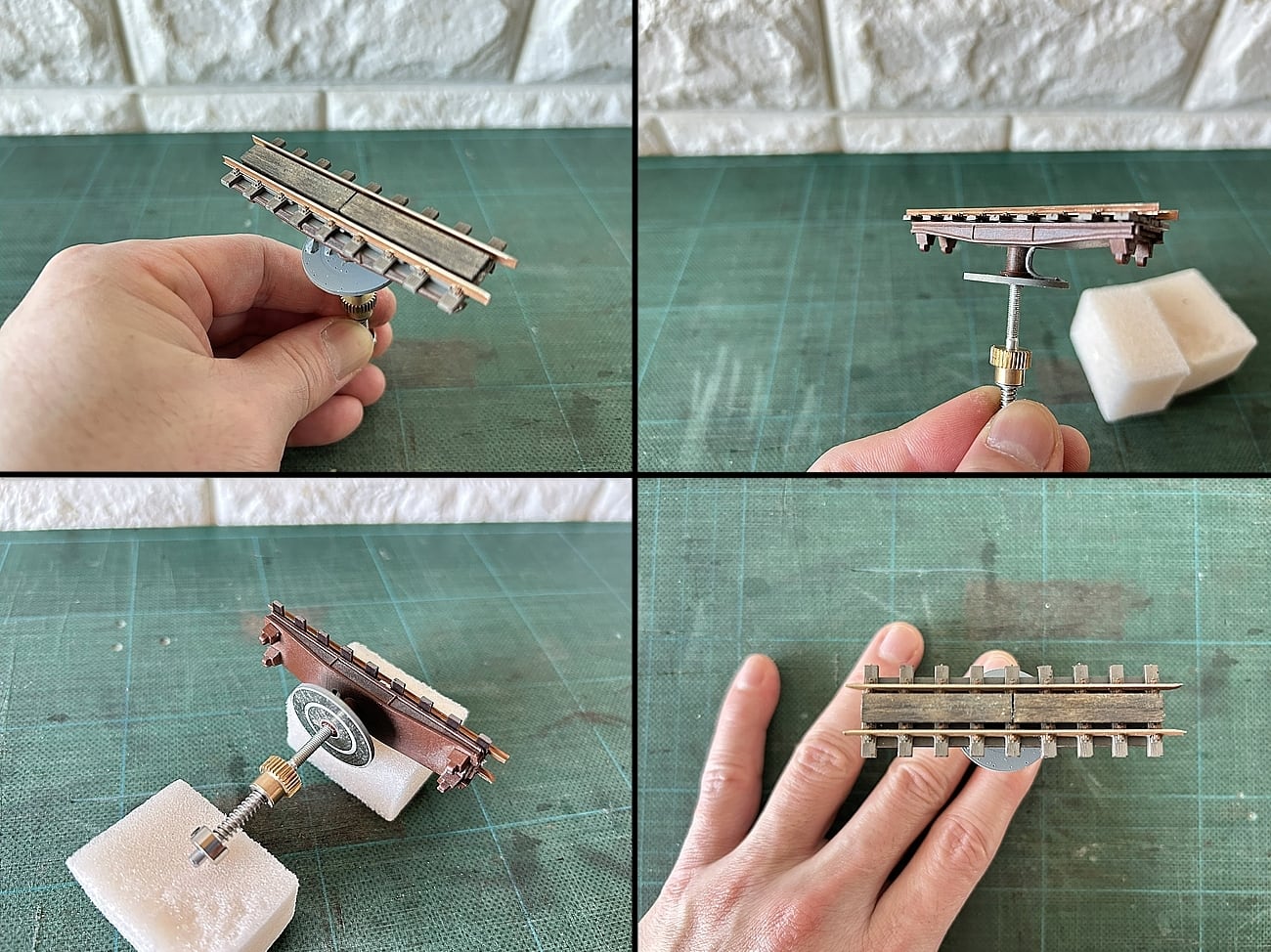

Base with PECO track (pre-wired)
Gearbox (pre-assembled)

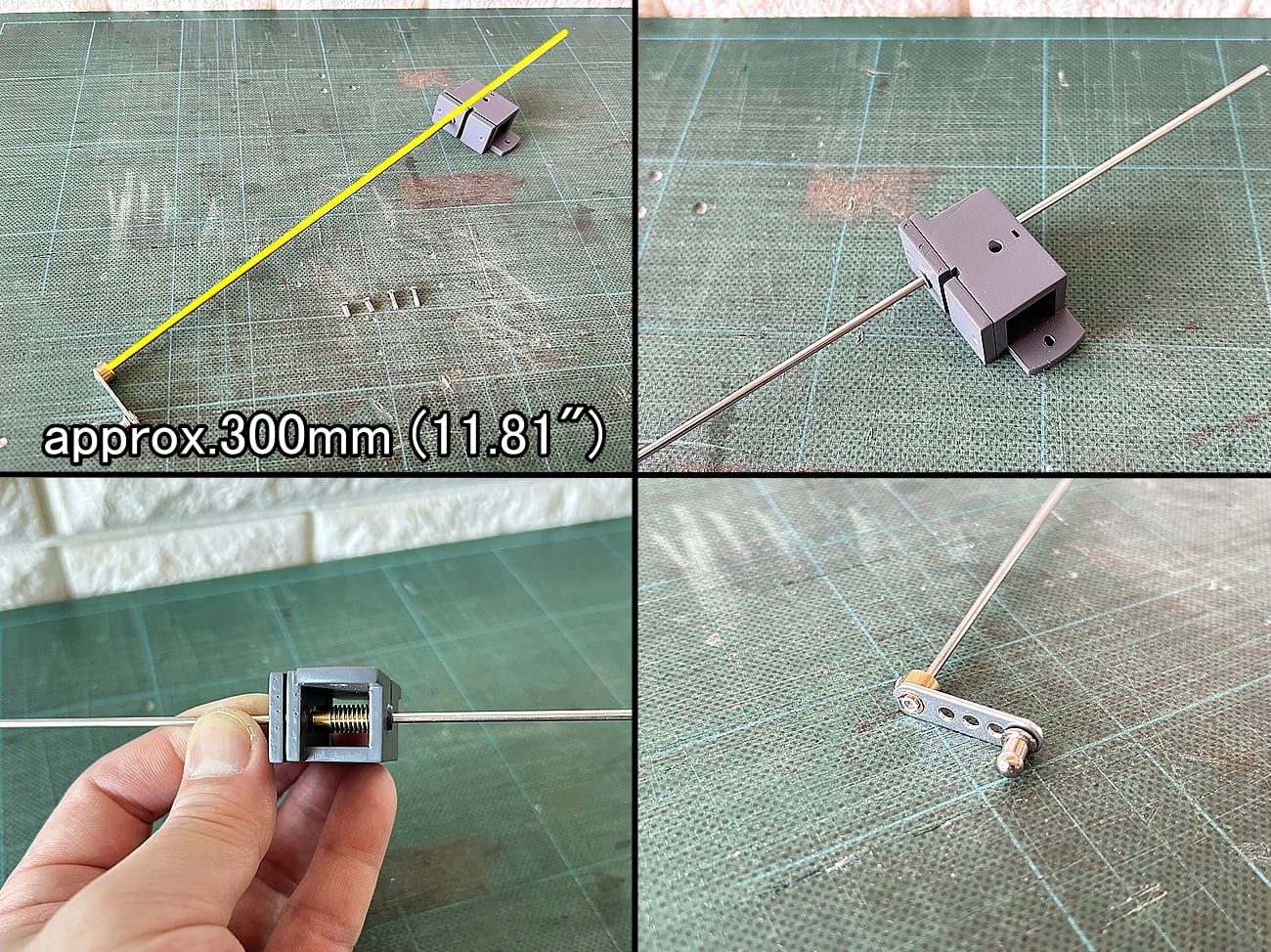

Shaft (approx. 30 cm / 11.8") with manual hand crank

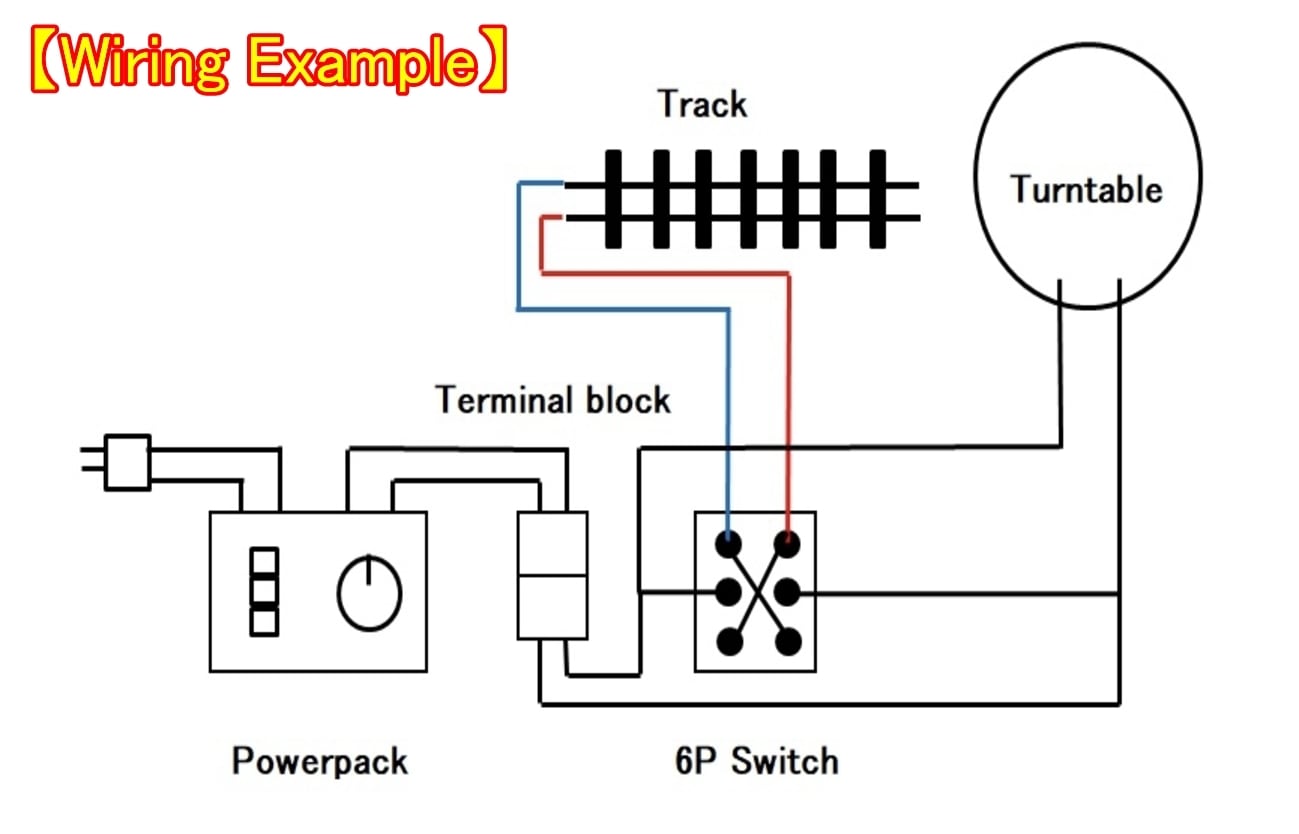

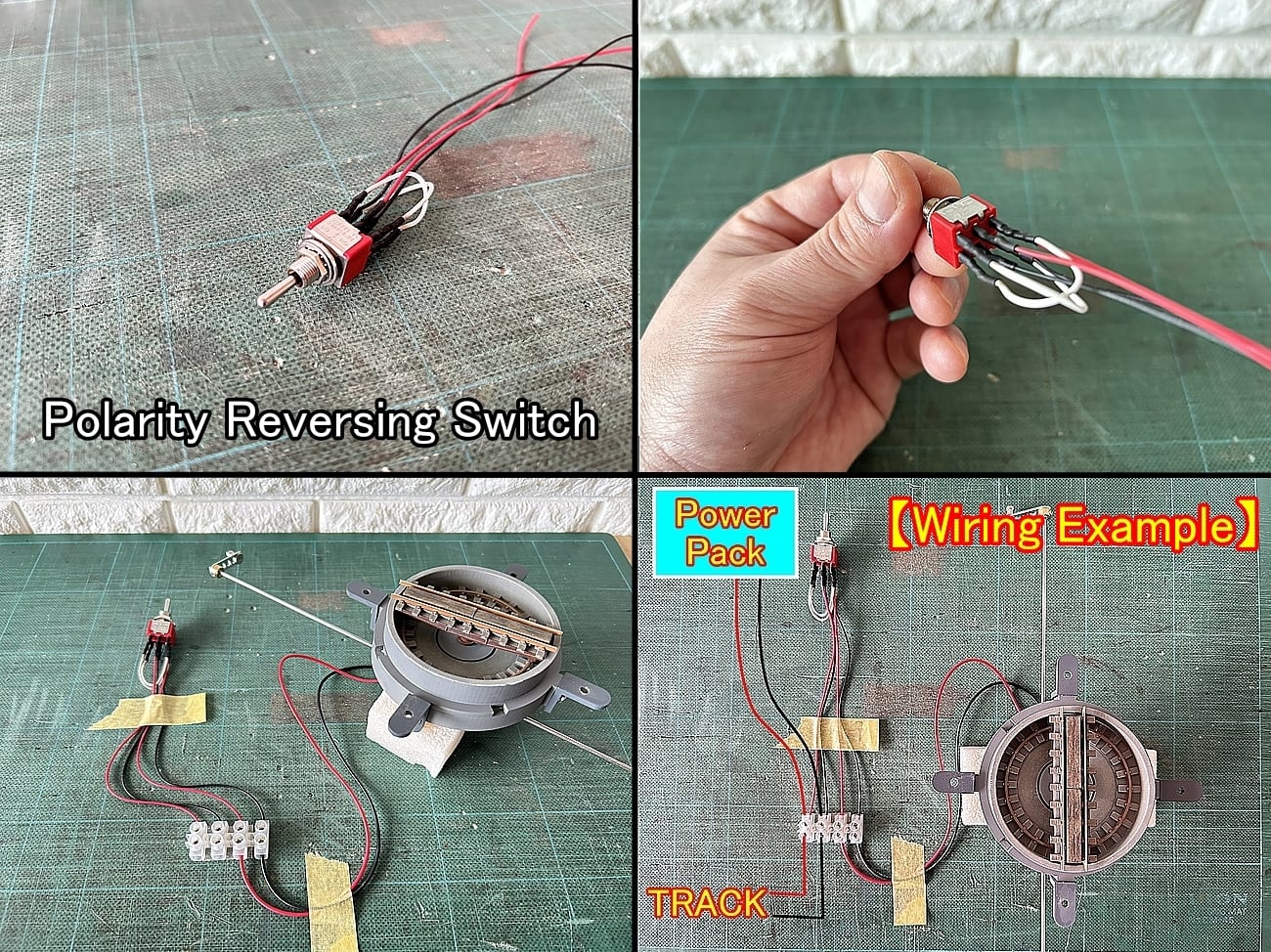

Polarity reversing switch (pre-wired)

【Specifications】

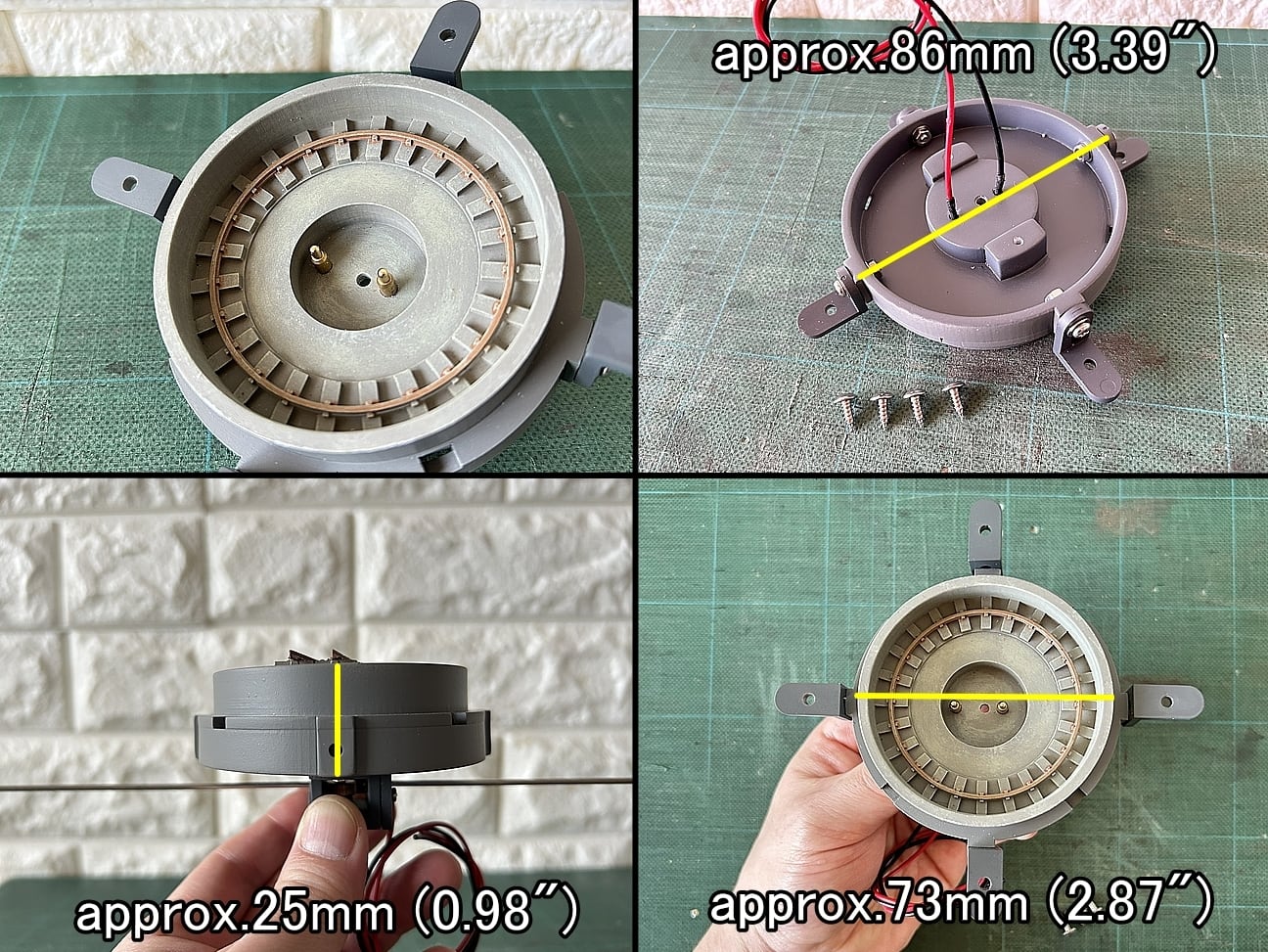

Dimensions: Diameter 73mm / 86mm × Height 25mm (2.87" / 3.39" × 0.98")
Track: PECO SL-404 Flexible Track (OO-9 / HOe)
Material: Resin
Operation: Manual rotation (gear-assisted)

【Notes】
This is a handcrafted item — minor variations may occur.
Hand-cranked operation only (no motor drive).
Designed for DC-powered layouts. No DCC electronics included.
No soldering, drilling, or painting required — just install and connect.
